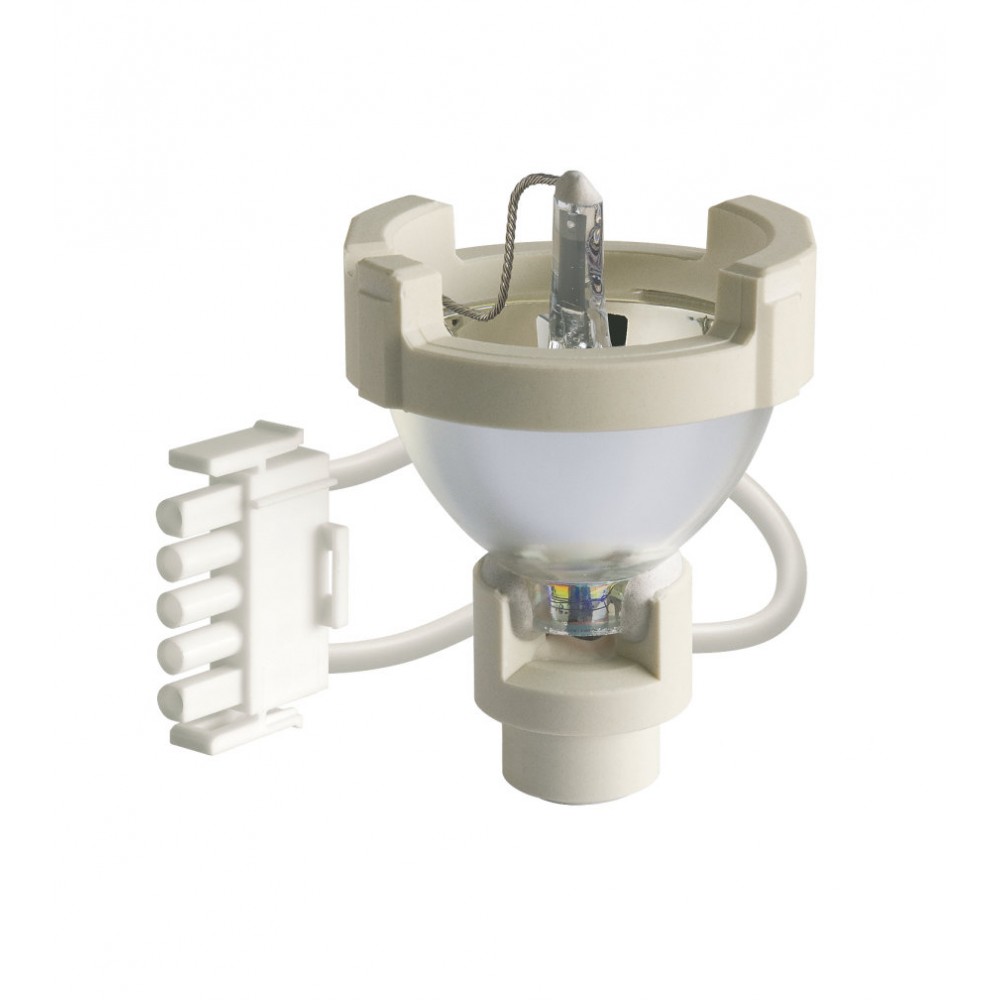

Short arc lamp XBO R 180 W/45 C OFR Osram

Specifications

Short arc lamp XBO R 180 W/45 C OFR, with Osram quality,

Characteristics

Dimmable.
Direct light on startup.
High arc stability.
Continuous spectrum in the visible range.
Hot restart capability.
High color rendering index: R a > 95.
Color temperature: approx. 6,000 K, (daylight).

Benefits

Long lamp life.
Very high brightness, (point light source).
Constant light color throughout the life of the lamp.
Consistent color quality, regardless of lamp type and lamp power.

Specifications

Model: XBO R 180 W/45 C OFR.
Rated power: 180 W.
Lamp voltage: 12.8~14.8V.
Lamp current: 11.75~12.25A.
Lamp power: 150 W.
Current voltage: DC.
Lifetime: 500 h.
Focal length: 45mm.
Installation length: 81.5 mm.
Diameter: 64 mm.

Safety tips

Due to their high brightness, UV radiation and high internal pressure in both hot and cold conditions, XBO lamps must only be operated in suitable closed enclosures.

Always use the protective jackets provided when handling these lamps. They can only be used as open lamps if appropriate safety measures are taken.

The xenon lamp element is always under very high pressure.
May explode if impacted or damaged.

Therefore, used XBO reflector lamps should be stored out of reach in the provided housing or under the protective cap until sent for disposal.
