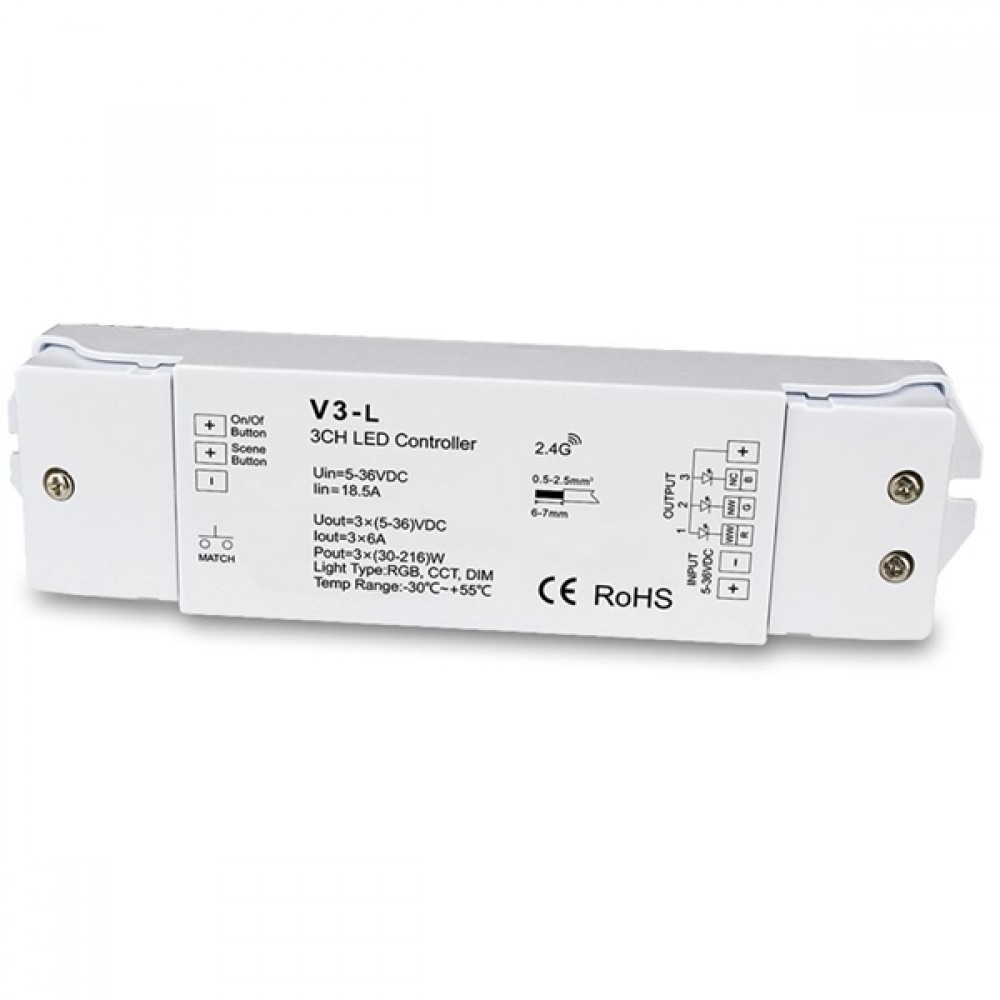

Controller Simlicity dimming 3 channels multiple functions for led strip V3-L Cuba Lux

Controller Simlicity dimming 3 channels multiple functions for led strip V3-L Cuba Lux

Specifications

Controller simlicity for led tape.

The controller is controlled by: RF multifunction switch & Push Button switch.

• Intensity: max. 216 Watt/12VDC-432 Watt/24VDC
• Length: 17.5cm
• Width: 4.5cm
• Height: 2.7cm
• Power: 3x72 Watt/12VDC-3x144 Watt/24VDC
• Output: PWM fixed voltage
• Output current: 3CH, 6A/CH(18A max)
• Output voltage: 12-36VDC
• Operating temperature: -30°C~+55°C
• Degree of leakage: IP20
• Color: White
• Energy class: A++
• Dimming levels: 0-100%
• Control distance: 30m
• Usage: The Controller manages LED tapes: Monochrome dimming, RGB color-management-Dimming, CCT white-dimming.

Manufacturer: Cuba Lux
